Tracing the communication between SIM and mobile phone

Turbo Lite 2 with Turbo Progammer 2 provide poweful tool for tracing the SIM-Mobile Equipment communication.

What you need:

Turbo Programmer 2

Turbo Lite 2 or Turbo Motion 2 with L1 debug kernel

turbo-prog-utils package installed

Mobile phone

SIM card

SIM-ME Communication Tracing Kit is available in our e-shop.

To check if you have Turbo Lite 2 with L1 debug kernel see Menu - Turbo - Setup - About. If there is no "Turbo Debug-L1" label then reflash your Turbo Lite 2 with debug kernel.

Tracing the communication:

Connect Turbo Programmer 2 to USB cable and wait until the RUN LED is on

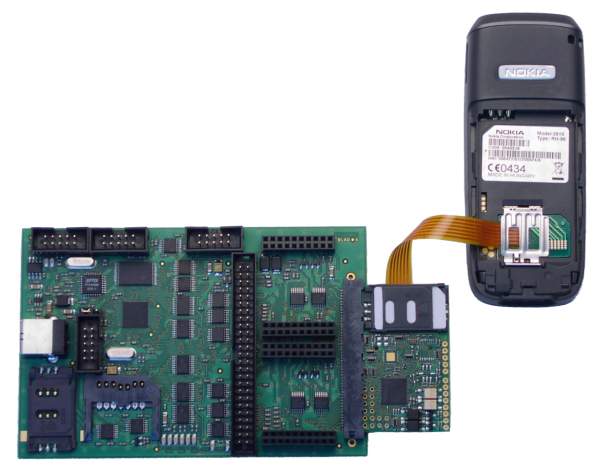

Connect Turbo Lite 2 with inserted SIM to the phone
Insert Turbo Lite 2 into the long card edge connector on the Turbo Programmer 2
Go to turbo-prog-utils/bin-linux-ia32 or turbo-prog-utils/bin-win32 folder
Run the dbg command with required parameters

Linux:		Windows:
bin-linux-ia32]# ./dbg		bin-win32>dbg.exe -d com7

Start the phone

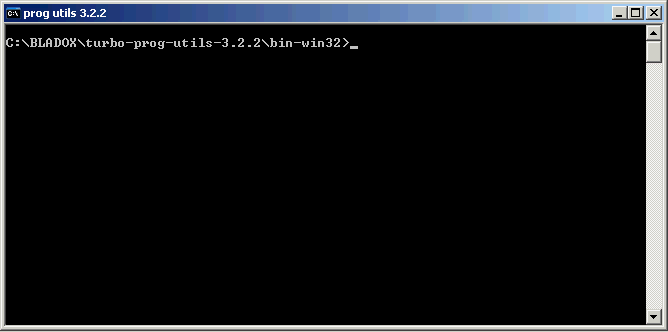

Example shows the communication between SIM card and mobile phone

You can save the output to the log.txt file adding the "| tee log.txt" command.

Linux:		Windows:
bin-linux-ia32]# ./dbg 2>&1 \| tee log.txt		bin-win32>dbg.exe -d com7 \| tee log.txt

If you get "Cannot open application turboadapter.trb" then update your programmer.
