Actions

---

Detailed Description

Actions are used by kernel to inform application that some situation or event occured and is up to the application to react. Optionally kernel may append some data related to the given action.

Actions could be divided by several criteria:

• whether they are registerable (voluntary) by the application with the help of reg_action() call or whether they are non registerable - invoked by the kernel on some occasion.
• whether they are user action invoked by host application via USB.
• special case are hardware IRQs, which are handled by kernel and passed to application.

The basic actions are related to application life cycle - they are invoked when e.g. the application is loaded into memory, when there is time for the application to initialize itself or when the application is unloaded from memory and should clean up resources it used.

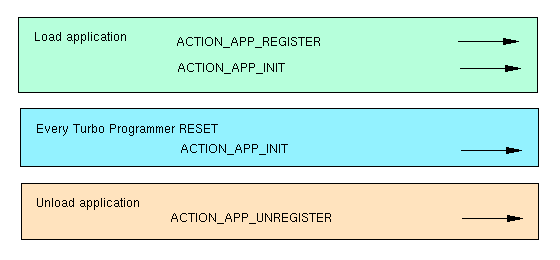

Application lifecycle

Non registerable lifecycle related actions:

• ACTION_APP_REGISTER, application is loaded into memory
• ACTION_APP_UNREGISTER, application is unloaded from memory
• ACTION_APP_INIT, invoked on every Turbo Programmer RESET

Defines

• #define ACTION_APP_REGISTER
• #define ACTION_APP_UNREGISTER
• #define ACTION_APP_INIT
• #define ACTION_SIG_INTERRUPT0
• #define ACTION_SIG_INTERRUPT1
• #define ACTION_SIG_INTERRUPT2
• #define ACTION_SIG_INTERRUPT3
• #define ACTION_SIG_INTERRUPT4
• #define ACTION_SIG_INTERRUPT5
• #define ACTION_SIG_INTERRUPT6
• #define ACTION_SIG_INTERRUPT7
• #define ACTION_SIG_OUTPUT_COMPARE2
• #define ACTION_SIG_OVERFLOW2
• #define ACTION_SIG_INPUT_CAPTURE1
• #define ACTION_SIG_OUTPUT_COMPARE1A
• #define ACTION_SIG_OUTPUT_COMPARE1B
• #define ACTION_SIG_OVERFLOW1
• #define ACTION_SIG_OUTPUT_COMPARE0
• #define ACTION_SIG_OVERFLOW0
• #define ACTION_SIG_SPI
• #define ACTION_SIG_UART0_RECV
• #define ACTION_SIG_UART0_DATA
• #define ACTION_SIG_UART0_TRANS
• #define ACTION_SIG_ADC
• #define ACTION_SIG_EEPROM_READY
• #define ACTION_SIG_COMPARATOR
• #define ACTION_SIG_OUTPUT_COMPARE1C
• #define ACTION_SIG_INPUT_CAPTURE3
• #define ACTION_SIG_OUTPUT_COMPARE3A
• #define ACTION_SIG_OUTPUT_COMPARE3B
• #define ACTION_SIG_OUTPUT_COMPARE3C
• #define ACTION_SIG_OVERFLOW3
• #define ACTION_SIG_UART1_RECV
• #define ACTION_SIG_UART1_DATA
• #define ACTION_SIG_UART1_TRANS
• #define ACTION_SIG_2WIRE_SERIAL
• #define ACTION_SIG_SPM_READY

Typedefs

• typedef void( t_turbo_main )(u8 action, void *data)

Functions

• u8 reg_action (u8 action)
• void unreg_action (u8 action)

---

Define Documentation

#define ACTION_APP_INIT

Invoked for application to initialize its internals.

#define ACTION_APP_REGISTER

Invoked for application registration. Called only once when the application is loaded into the memory. By registration we mean one time process, when application can e.g. allocate EEPROM structures.

#define ACTION_APP_UNREGISTER

Invoked when application is unloaded from memory. Application should clear the resources it used (EEPROM).

#define ACTION_SIG_2WIRE_SERIAL

Register if application should receive given IRQ.

#define ACTION_SIG_ADC

Register if application should receive given IRQ.

#define ACTION_SIG_COMPARATOR

Register if application should receive given IRQ.

#define ACTION_SIG_EEPROM_READY

Register if application should receive given IRQ.

#define ACTION_SIG_INPUT_CAPTURE1

Register if application should receive given IRQ.

#define ACTION_SIG_INPUT_CAPTURE3

Register if application should receive given IRQ.

#define ACTION_SIG_INTERRUPT0

Register if application should receive given IRQ.

#define ACTION_SIG_INTERRUPT1

Register if application should receive given IRQ.

#define ACTION_SIG_INTERRUPT2

Register if application should receive given IRQ.

#define ACTION_SIG_INTERRUPT3

Register if application should receive given IRQ.

#define ACTION_SIG_INTERRUPT4

Register if application should receive given IRQ.

#define ACTION_SIG_INTERRUPT5

Register if application should receive given IRQ.

#define ACTION_SIG_INTERRUPT6

Register if application should receive given IRQ.

#define ACTION_SIG_INTERRUPT7

Register if application should receive given IRQ.

#define ACTION_SIG_OUTPUT_COMPARE0

Register if application should receive given IRQ.

#define ACTION_SIG_OUTPUT_COMPARE1A

Register if application should receive given IRQ.

#define ACTION_SIG_OUTPUT_COMPARE1B

Register if application should receive given IRQ.

#define ACTION_SIG_OUTPUT_COMPARE1C

Register if application should receive given IRQ.

#define ACTION_SIG_OUTPUT_COMPARE2

Register if application should receive given IRQ.

#define ACTION_SIG_OUTPUT_COMPARE3A

Register if application should receive given IRQ.

#define ACTION_SIG_OUTPUT_COMPARE3B

Register if application should receive given IRQ.

#define ACTION_SIG_OUTPUT_COMPARE3C

Register if application should receive given IRQ.

#define ACTION_SIG_OVERFLOW0

Register if application should receive given IRQ.

#define ACTION_SIG_OVERFLOW1

Register if application should receive given IRQ.

#define ACTION_SIG_OVERFLOW2

Register if application should receive given IRQ.

#define ACTION_SIG_OVERFLOW3

Register if application should receive given IRQ.

#define ACTION_SIG_SPI

Register if application should receive given IRQ.

#define ACTION_SIG_SPM_READY

Register if application should receive given IRQ.

#define ACTION_SIG_UART0_DATA

Register if application should receive given IRQ.

#define ACTION_SIG_UART0_RECV

Register if application should receive given IRQ.

#define ACTION_SIG_UART0_TRANS

Register if application should receive given IRQ.

#define ACTION_SIG_UART1_DATA

Register if application should receive given IRQ.

#define ACTION_SIG_UART1_RECV

Register if application should receive given IRQ.

#define ACTION_SIG_UART1_TRANS

Register if application should receive given IRQ.

---

Typedef Documentation

typedef void( t_turbo_main)(u8 action, void *data)

Turbo handler type definition.

---

Function Documentation

u8 reg_action (  u8  action  )

Register action. Parameters: action  Returns: #NO_ERROR or #ERR_RESOURCE_BUSY (some actions can be registered by only one appliacation). See also: unreg_action() Examples: sim/module-src/sim.c, and turboadapter/module-src/turboadapter.c.

void unreg_action (  u8  action  )

Unregister action. Parameters: action  See also: reg_action()
