Turbo Programmer 2 Reference Documentation

Ed.04081501

Note:

This document is a work in progress. As such, it may contain incorrect information. If you find a mistake, please send an email to the info@bladox.com describing the mistake. Also, send us an email if you find that a specific topic is missing from the document. The latest version of this document is always available from http://www.bladox.com

This is the Developer Documentation. There is also Turbo Programmer 2 Datasheet available in PDF on our site, i.e. http://www.bladox.com/ It includes schematics and other hardware related information that is too big to include in this document.

Turbo Programmer 2 Features

• Atmel ATmega128 with 256KB external SRAM
• USB 1.1 FTDI FT8U245BM chip
• SIM (GSM Subscriber Identity Module) card, MMC card, MLW with full MCU I/O connectors
• 8 user controlled LEDs
• unique support for loadable, relocatable applications
• bootloader
• free software, open source applications (GPL'ed) for:
  • SIM card manipulation - ISO 7816 and GSM 11.11 stacks
  • Atmel DataFlash memory cards
  • AVR ISP programming
  • BLADOX Turbo SIM Toolkit Adapter programming and debugging

What is it good for?

• General AVR development
• GSM SIM and Mobile Equipment development, SIM <-> ME protocol debugging
• GSM SIM Application Toolkit development and debugging
• Atmel DataFlash and general MMC development
• AVR chip programming
• BLADOX Turbo SIM Toolkit Adapter programming, development and debugging

Turbo Programmer 2

Turbo Programmer 2 is much more than just a programmer, the name is historical and was chosen because the device has been developed for Turbo SIM Toolkit Adapter development.

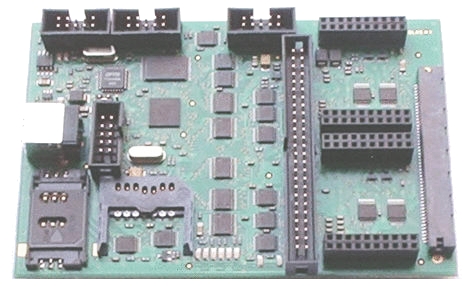

Turbo Programmer 2 is USB (FTDI chip) devel kit/board equipped with Atmel ATmega128, 256KB extra SRAM, several connectors with full MCU interfaces and connectors for SIM and MMC cards. Further there is a card edge connector for Turbo Adapter family devices.

What makes Turbo Programmer 2 interesting is the firmware, esp. the support for relocatable applications (sometimes called modules) and mechanism of actions. The mechanism of relocatable applications allows to upload just the relocatable code that is linked to the free space by the operating system. Hence it is possible to upload and remove application on the fly without reseting MCU and without flashing the whole MCU memory. The development is faster and easier that standard .hex flashing or bootloader. And it is possible to have more applications in memory and to work on more projects simultaneously.

The bootloader is provided as well and user can reflash the firmware (but loader memory section).

This documentation contains several chapters, notably:

• Installation, Development Environment, Tools
• Application and Its Life Cycle
• Getting Started, Hello World!
• Bootloader Usage

API Reference

• Actions
• Memory
• USB
• Hardware
