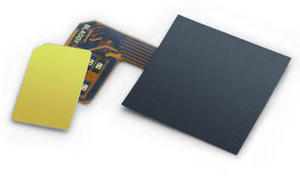

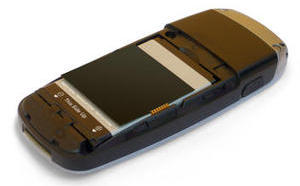

BLADOX Waver


Max and Philippa introduce Waver
  • BLADOX Waver brings ISO 14443 contactless (RFID, NFC card) interface to virtually all mobile phones.
  • BLADOX Waver is equipped with NXP Semiconductors strong secure element recognized by financial industry (payment cards) and goverment bodies (identity cards and biometric passports).
  • BLADOX Waver is ideal for contactless mobile payment systems, transportation and identity solutions.
  • BLADOX Waver is independent on operators and allows free deployment of mobile contactless systems without mobile operator cooperation. Works with any SIM or USIM card.
  • BLADOX Waver is real plug and play device, no need to install any application software in mobile phone. Utilizing SIM Toolkit it is well integrated into phone user interface.
  • BLADOX Waver comes with new improved Turbo SIM operating system v2.0 with enhanced security and application management.
  • BLADOX Waver secure element complies with JavaCard 2.2.1, Global Platform 2.1.1 and includes hardware crypto co-processor for Triple-DES, PKI RSA, ECC and hashing methods.
  • BLADOX Waver supports ISO/IEC 14443-4A and MIFARE protocols.
  • BLADOX Waver offers design for easy integration of other ISO 14443 secure elements (Calypso, FeliCa) following regional and customer needs.

         BLADOX Waver contactless demonstration video and picture gallery, iPhone special.


         Visit web based Waver Demos and Waver Admin pages.

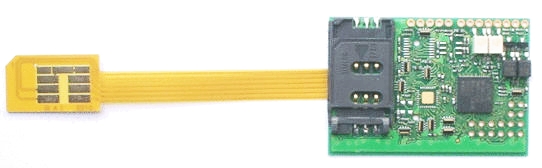

Turbo Lite 2
  • Mobile phone accessory, can be used in any SIM Toolkit enabled mobile phone
  • Comes with Pager v2 application preloaded - remote SMS control and measurement
  • 2+2 opto-isolated inputs and outputs for easy sensors/controls connection
  • Additional 13 inputs or outputs, 4 of them usable as analog inputs, Turbo Lite compatible
  • Turbo Adapter compatible ports, I2C, SPI interfaces
  • Open application development
  • Debugging interface, usable for SIM-ME communication tracing
  • Best price solution for GSM remote control and measurement
Datasheet (PDF)

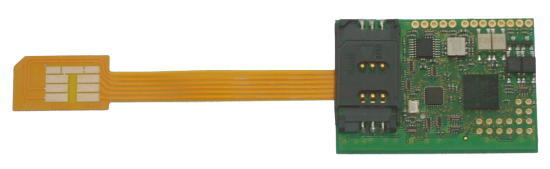

Auto Alarm, Turbo Motion 2
  • Mobile phone accessory
  • Auto Alarm application preloaded - movement and tilt detection with the included accelerometer
  • 2+2 opto-isolated inputs and outputs
  • Additional 13 inputs or outputs - possibility to connect central locking, sensors, immobiliser and other alarms
  • Exact location from GPS receiver connected via RS232 interface
  • Control via simple SMS commands
  • Warning SMS on more numbers, rights management available
  • Easy to configure on mobile phone display
  • No in-car installation needed, both for cars and motorbikes
  • Best price solution for vehicle security
User Guide (PDF)
Turbo SIM
  • Turbo SIM is a revolutionary new product for SIM Toolkit based mobile applications deployment.
  • Turbo SIM brings applications to every GSM mobile phone produced since 1998.
  • Turbo SIM allows businesses and service providers to implement solutions without depending on operators and device vendors: directory services can provide easy to use mobile applications, security forces can enjoy secure messaging, businesses can track employees with 20 logging positions in one SMS, etc.

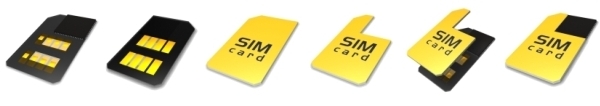

  • Turbo SIM is inserted into the mobile phone together with operator SIM, only small piece of SIM card plastic is cut off. SIM card remains still perfectly usable without Turbo SIM.
  • Turbo SIM is 100% application compatible with Turbo SIM Toolkit Adapter family and developers can use the same free and open source development tools.
Press Release (PDF)
Turbo SIM - Security Edition Flyer (PDF)

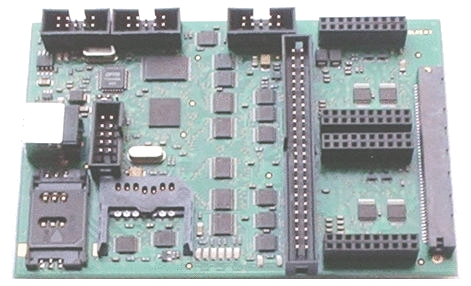

Turbo Programmer 2
  • Kit for comfortable development of Turbo hardware and software applications
  • Universal development kit for AVR, USB, MMC and SIM
  • SIM and Memory Card management
  • Turbo firmware upgrade
  • BRUM 802.15.4 development
Hardware Guide (PDF)
Development Documentation (HTML)

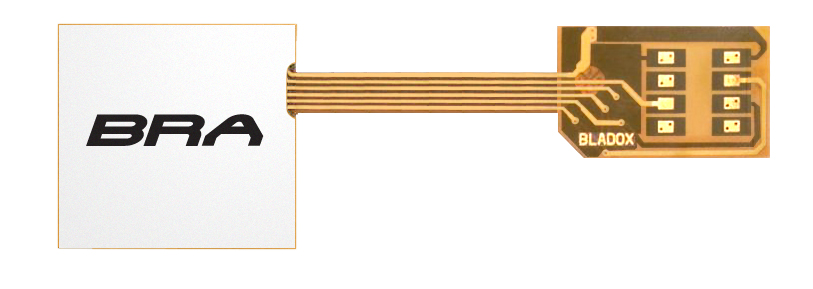

Turbo BRA
  • Bladox Radio Architecture
  • 802.15.4 2.4GHz radio for mobile phones, ZigBee optional
  • SIM Toolkit wireless API
  • Proximity marketing and payment systems
  • Home automation, sensor networks management, 802.15.4-GSM gateway
  • Open, free application development
  • 1.1mm thin, smaller than 2 SIM cards, flexible, fits into most phones
Press Release (PDF)

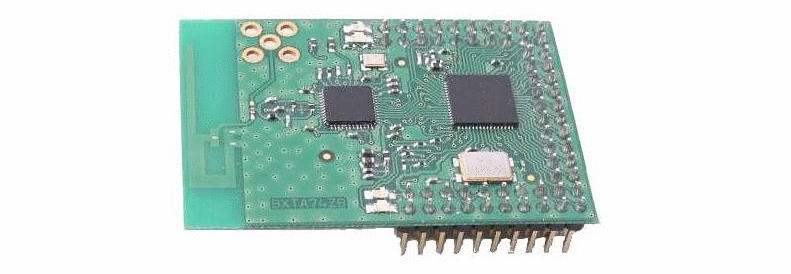

BRUM
  • Bladox Radio Universal Module
  • 802.15.4/BRA 2.4GHz wireless module
  • Atmega128 and CC2420 based
  • Standalone battery powered operation
  • Turbo like loadable applications
  • Bootloader - upgradable kernel

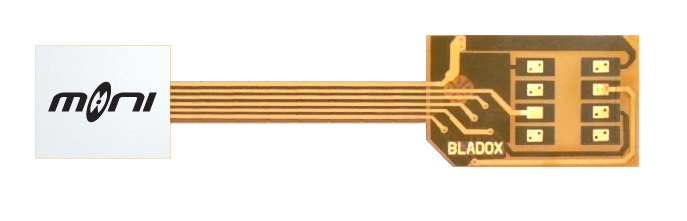

Turbo Mini
  • Independent SIM Toolkit application deployment
  • Easy to develop SIM Toolkit applications
  • Payment and banking systems
  • Call control, alternative call routing and callback systems
  • Open, free application development
  • Tiny, 1.1mm thin, flexible, fits into almost all phones

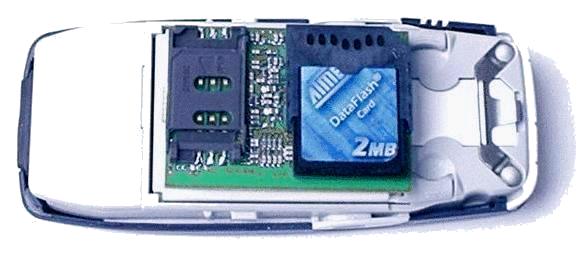

Turbo, SIM Toolkit. What does it mean?
Insert Turbo into the phone and you can use various applications.

Applications? Why, what for?
For example you can store text messages on removable memory card and have huge SMS archive. Or use encrypted messages and be sure about your privacy. Or mask incoming messages against enemy. You can store texts on the memory card as well. And locate friends. And keep secrets. And many other things.

And next?
Turbo can be also used for remote control and measurement. There are several universal ports, interfaces and A/D converters available on the connector. It is trivial to connect for example alarm or thermometer.

Anything else?
Also you can write your own applications. The GNU development tool chain is open source, free software. We have published all the source code of our applications and do our best with documentation and providing many examples.

NEWS

May 14, 2010

November 2, 2009

October 19, 2009
Zenius Payment Suite PRESS RELEASE
All in one MasterCard PayPass, Visa payWave, American Express ExpressPay and Discover Network ZIP Payment Suite for BLADOX Waver

July 19, 2009
BLADOX Waver Development Kit in our eshop
Waver Demos page web based Waver demos
Waver Admin page web based Waver administration
turbo-devel-1.3.12.tar.gz devel package with updated API
wallet-0.4.tar.gz Waver Wallet example source code
id-0.2.tar.gz Waver Id example source code

November 4-6, 2008

February 12, 2008

January 19, 2008
callback-0.9.tar.gz - Callback 0.9 appplication

January 8-11, 2007
CES'07, Las Vegas
Point of Sale terminal demo at Texas Instruments booth, ZigBee Alliance Member Pavilion #26426

September 25, 2006
New products: Turbo BRA, BRUM, Turbo Mini
Turbo BRA PRESS RELEASE

August 23, 2006
turbo-devel-060822.tar.gz - new API's, examples, docs
Development Documentation updated
secure-3.0.3.tar.gz - Security Edition encrypted SMS, Security Edition User Guide
procsms-1.2.4.tar.gz - AES/CTR SMS encryption
gsmtstr-1.0.tar.gz - UTF-8 to UCS2 support
babyloader-1.0.7.tar.gz - Turbo Motion 2 Baby MCU reflash utility
autoalarm-1.9.26.tar.gz - Turbo Motion 2 version, GPS support, many updates

May 1, 2006
turbo-prog-utils-3.1.6 - includes new utilities for BRUM modules

April 8, 2006
Pager 2.1.0 call controlled outputs. Pager v2, Rev.03-06/04/08

March 27, 2006
amatus virtual mobile operator launched: roaming killer, low cost international calls, covering 50+ countries and growing, independent on mobile operators, user keeps own number/operator - simply the smartest mobile connection.

October 6, 2005
SS Thrasher 1.0 - not interesting SS DoS concept, more on SS Thrasher

September 2, 2005
New product Turbo Lite 2 - opto-isolated I/O, more ports and I2C, SPI interfaces.

August 15, 2005
Pager 2.0.1 massive improvement, a lot of new functionality. Pager v2, Rev.02-05/08/26

February 2, 2005
Pager 1.3.0 alarms for any change of digital input

January 20, 2005

January 8, 2005
Auto Alarm 1.3.1, Pager 1.2.1 French language support

January 2, 2005
SMSPal 1.0 - new application for high cadence SMS sending, more on SMS Machine Gun

December 28, 2004
gsmtstr-0.8 ISO-8859-1 to GSM 03.38 coding conversion utility

December 27, 2004
turbo-cable-utils-0.7.0, new utils turbo-info, turbo-lock, turbo-reset

December 26, 2004
turbo-prog-utils-2.2.0 new cemu utility - cable utils emulation with programmer

December 1, 2004
New product Turbo SIM announced, PRESS RELEASE

November 18, 2004
Noodle 0.9 - new application, interface for Google SMS, more on noodles.

September 12, 2004
turbo-prog-utils-2.1.0, turbo-cable-utils-0.6.0, Relay Output Schematics, PDF - 2 variants of relay output for Turbo Lite/Motion (Auto Alarm), open hardware

August 30, 2004
Auto Alarm - User Guide, Rev. 02-04/30/07, new version, also in German

August 23, 2004

August 16, 2004
Lite I/O Schematics, PDF - schematics of possible galvanic isolated power I/O board for Turbo Lite/Motion (Auto Alarm), open hardware

July 8, 2004

Jun 15, 2004
Turbo Lite - new product with unique price €39 EUR.

May 10, 2004
TAVRIX 0.9, live-on CD Linux AVR and Turbo development distribution

April 19, 2004

April 6, 2004
Your Project - BASIC Interpreter

March 15, 2004

March 11, 2004
E-Shop launched, Turbo available now!
